    cweiss
    2019年6月07日

    Missing B screws

    在 Basic Assembly and Setup

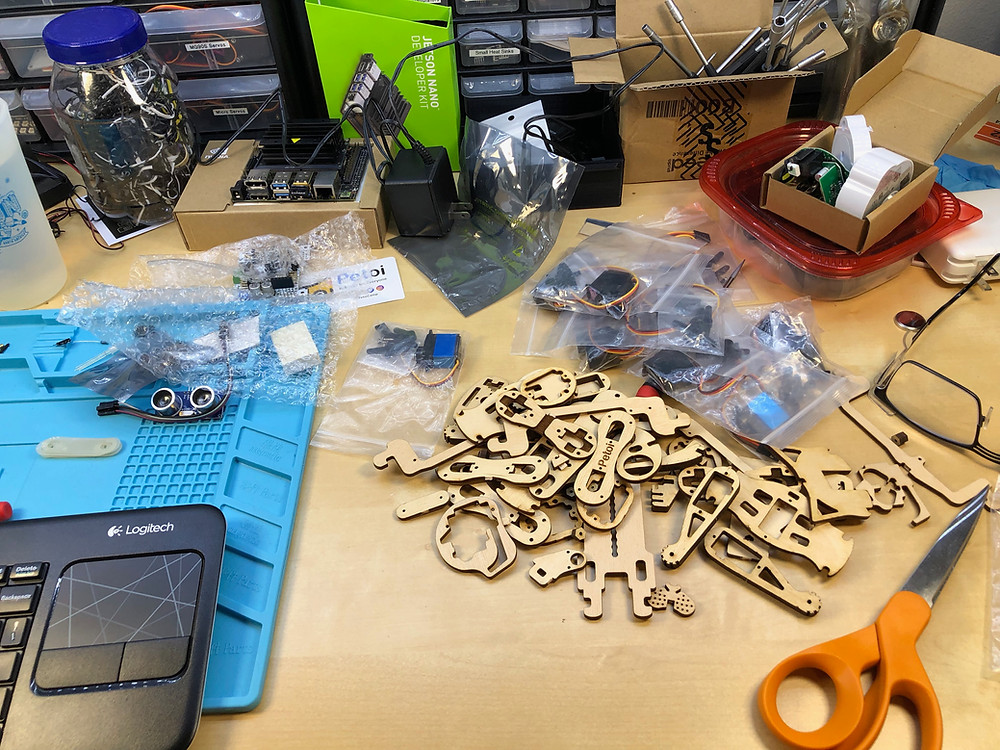

    I just got my kit today (huzzah!) I did not find any B screws in it though. So far, everything else seems to be there. The board with the shanks on it had tape, but I don't recall any blocks with the screws set in them. I just dove right in and started assembling, so I don't have any good pics of the raw pieces other than the attached.



    Also, small bit of feedback - the sanding block was just a little too inadequate to sand all the pieces down for me. Can I just roll with 220grit sandpaper?


    There is a green "2" written on one end of the priority mail box the kit came in.

    Order #826

    4 則留言
    0
    4 則留言
    cweiss
    2019年6月08日

    Ah. I wasn't sure if my kit was a 'later version'. I was able to finish construction. The instructions on just how to mount the main board with a raspberry pi aren't very clear - I could not tell if the board was supposed to be mounted to the underside of the back pieces, or on top. On top seems to work so far.

    按讚
    R
    Rongzhong Li
    2019年6月08日
    回覆

    Yes, to the top side. Check out this side by side comparison. It's also shown in the written instruction.


    按讚

    R
    Rongzhong Li
    2019年6月07日

    Screw B are replaced by Screw C (with flat ends). Screw D are used for mounting servos, and their pointy ends are inside the robot body to avoid injury.

    按讚

    zhiguo pan
    2019年6月07日

    It’s different in recent shipments. Mine is as same as yours. screw b was to be replaced by screw c, which is mentioned in the instruction.

    按讚
    4 則留言
