    A Customized Panel for the Infrared Remote

    在 Hardware

    When I ordered the first batch of materials for the kit, I was unsure how many units would be sold. So we put small orders and were never successful in getting a manufacturer to make customized panels for our infrared remotes. Now we are preparing a new batch of inventory, and I think it's a chance to make the panel more stylish and intuitive.

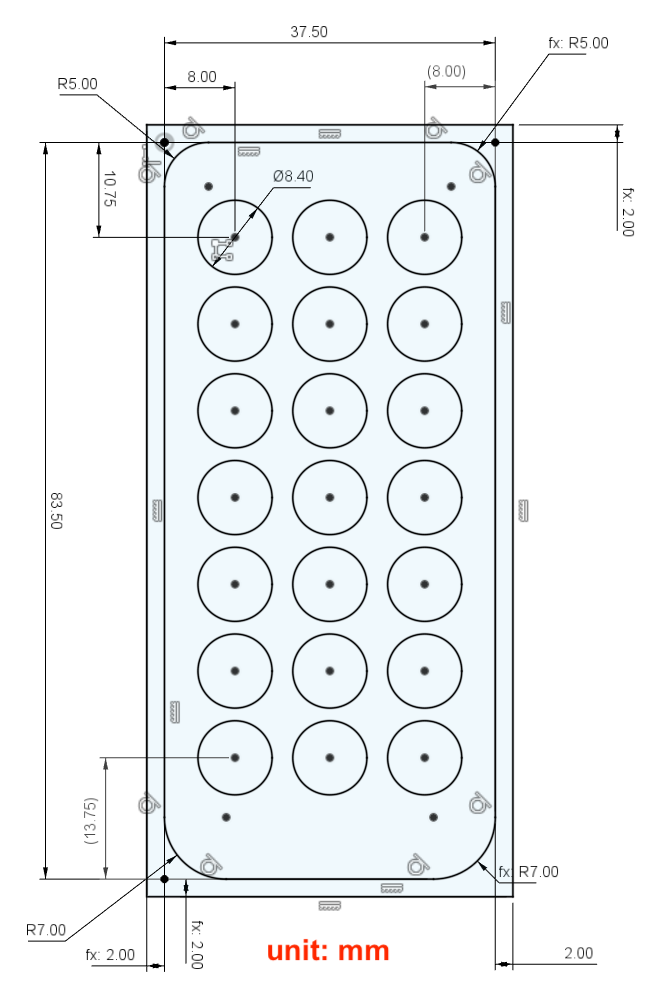

    I was also inspired by Igor Dobec's post on the Template for Remote. So before I approach some designers, I made the precise measurements of the panel and want to share the design materials here. Maybe you can get some better ideas. It could become a fully customized plastic panel for future users or a sticker that can be printed to cover your old remote.









    Of course, there are many factors/constraints to consider:

    • The symbols should be simple to print clearly in a small area

    • It's better to be symbolic and irrelevant to a specific language

    • The remote will be used for both Nybble and Bittle, so they should be generic for different skills. (see the code section below)

    • The style of the symbols should be consistent


    Let's see what will come out of the community!💡


    //abbreviation //gait/posture/function names
    #define K00 "d"       //rest and shutdown all servos
    #define K01 "F"       //forward
    #define K02 "g"       //turn off gyro feedback to boost speed

    #define K10 "L"       //left
    #define K11 "balance" //neutral stand up posture for balancing
    #define K12 "R"       //right

    #define K20 "p"       //pause motion and shut off all servos
    #define K21 "B"       //backward
    #define K22 "c"       //calibration mode with IMU turned off

    #define K30 "vt"      //stepping
    #define K31 "cr"      //crawl
    #define K32 "wk"      //walk

    #define K40 "tr"      //trot
    #ifdef NYBBLE
    #define K41 "lu"      //look up
    #define K42 "buttUp"    //butt up
    #else //BITTLE
    #define K41 "ck"      //check around
    #define K42 "pd"      //play dead
    #endif

    #define K50 "hi"      //greeting
    #define K51 "pu"      //push up
    #define K52 "pee"     //standng with three legs

    #define K60 "str"     //stretch
    #define K61 "sit"     //sit
    #define K62 "zero"    //zero position






    RemoteDesignFiles
    .zip
    Download ZIP • 260KB
